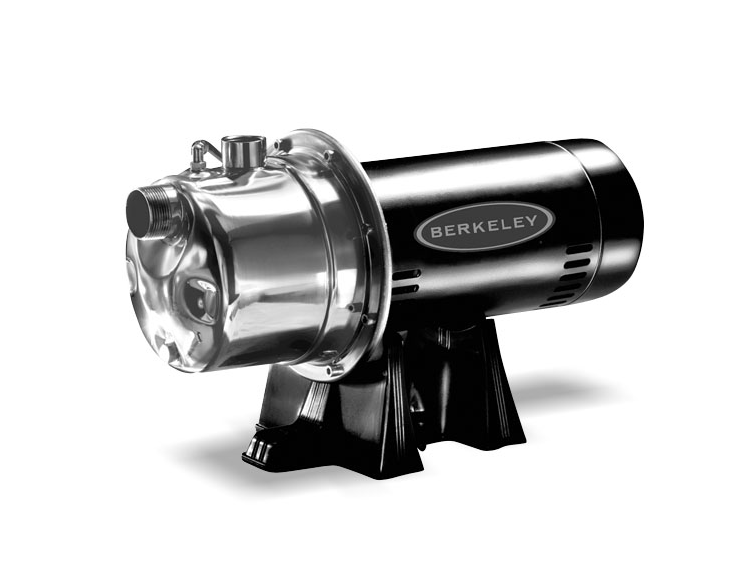

Pentair Berkeley SJH Series Stainless Steel Shallow Well Jet Pumps

ClearJet models provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.

  • Stainless Steel Pump Body Provides Maximum Resistance To Corrosion
  • Built-In Jet Made of High Strength Thermoplastic Components
  • Mechanical Shaft Seal with Highly Polished Carbon-Ceramic Faces and Stainless Steel Components
  • Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contaminants
  • Dynamically Balanced Rotor is Die Cast Under High Pressure For Uniform Performance and Greater Efficiency
  • Heavy-Duty Ball Bearings: Shielded, Permanently Lubricated Bearings, Extensively Tested To Ensure Extended Life and Smooth, Quiet Operation
  • Stainless Steel Pump and Motor Shaft Provides Maximum Corrosion Resistance; One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
  • Dustproof Motor Cover Protects All Electrical Components From Dirt, Dust, and Insects. Ventilating Air Cannot Contaminate Vital Switching Components
  • Quality Pressure Switch with Fixed 20 PSI Differential
Explore purchase options available for this product.
Where to Buy

Specifications

Item #HorsepowerVoltageMAXIMUM LIQUID TEMPMAX INLET PRESSUREAVERAGE PRIMING TIME AT 20 FEETBODYJET ASSEMBLY DIFFUSER IMPELLERShaftBASEPrimary Product Attributes
Item #
17858
Horsepower
Available in 3/4 or 1 HP
Voltage
115v / 230v, 60 Hz
MAXIMUM LIQUID TEMP
122 degrees F (50 degrees C)
MAX INLET PRESSURE
50 PSI
AVERAGE PRIMING TIME AT 20 FEET
3/4 HP: 4.2 minutes / 1 HP: 4.2 minutes
BODY
304 Stainless Steel
JET ASSEMBLY DIFFUSER IMPELLER
NORYL (R)
Shaft
One-Piece Threaded, 416 Stainless Steel
BASE
Polypropylene
Primary Product Attributes
