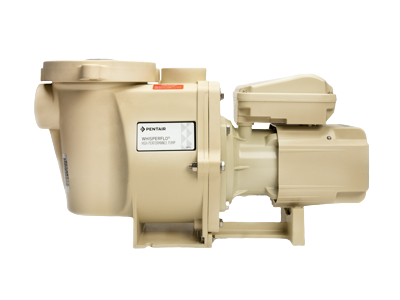

WhisperFlo® High Performance Pump

Proven Performance and Durability, Now DOE Compliant

Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved WhisperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.

  • Available high-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for a long, worry-free life.
  • Enhanced design and balanced flow enable greater efficiency and reduced operating costs.
  • Improved design that stands up to demanding installations and conditions.
  • 2” NPT suction and discharge ports.
  • Cam and RampTM Lid permits easy inspection and cleaning of the strainer basket.
  • Available models that meet DOE minimum efficiency requirements.
  • Available only in store from Pentair dealers or retail stores
Explore purchase options available for this product.
Where to Buy
TradeGrade Logo

Product Categories

DOE COMPLIANT SINGLE-SPEED TEFC: 015583
ENERGY EFFICIENT SINGLE-SPEED - NOT FOR SALE IN THE USA: 011511-INT, 011512-INT
TEFC SINGLE-SPEED - NOT FOR SALE IN THE USA: 011527-INT, 011528-INT, 011529-INT, 011530-INT
EFFICIENT SINGLE PHASE - 50HZ INPUT POWER FREQUENCY: 347926-INT, 347927-INT, 347928-INT, 347929-INT, 347930-INT

Specifications

Item #VoltageFull Load AmpsTHPWEFHHPSFPrimary Listings and CertificationsPort Size (NPT)Carton Wt. (Lbs)DOE CompliantPurchase Options
Item #
347927-INT
Voltage
240/120
Full Load Amps
7.5/15.0
THP
0.83
WEF

HHP

SF
1.10
Primary Listings and Certifications

Port Size (NPT)
2"
Carton Wt. (Lbs)
45
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
347926-INT
Voltage
240/120
Full Load Amps
7.5/15.0
THP
0.55
WEF

HHP

SF
1.10
Primary Listings and Certifications

Port Size (NPT)
2"
Carton Wt. (Lbs)
45
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
011530-INT
Voltage
208-230
Full Load Amps
14.6-12.7
THP
3.45
WEF

HHP

SF
1.0
Primary Listings and Certifications
UL‡, NSF/ANSI 50§
Port Size (NPT)
2"
Carton Wt. (Lbs)
62
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
011529-INT
Voltage
208-230
Full Load Amps
11.7-10.3
THP
2.60
WEF

HHP

SF
1.0
Primary Listings and Certifications
UL‡, NSF/ANSI 50§
Port Size (NPT)
2"
Carton Wt. (Lbs)
58
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
011528-INT
Voltage
208-230
Full Load Amps
10.3-9.1
THP
2.21
WEF

HHP

SF
1.0
Primary Listings and Certifications
UL‡, NSF/ANSI 50§
Port Size (NPT)
2"
Carton Wt. (Lbs)
53
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
011527-INT
Voltage
115/208-230
Full Load Amps
15.1/8.5-7.7
THP
1.65
WEF

HHP

SF
1.0
Primary Listings and Certifications
UL‡, NSF/ANSI 50§
Port Size (NPT)
2"
Carton Wt. (Lbs)
50
DOE Compliant
No
Purchase Options
Available Through Dealer
Item #
011512-INT
Voltage
115/208-230
Full Load Amps
12.8/7.0-6.4
THP
1.25
WEF

HHP

SF
1.0
Primary Listings and Certifications
UL‡, NSF/ANSI 50§
Port Size (NPT)
2"
Carton Wt. (Lbs)
44
DOE Compliant
No
Purchase Options
Available Through Dealer

*Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.

‡ ‘UL’ indicates that the pump bears a UL mark, and/or a cUL mark, signifying evaluation to UL 1081, the US Standard for Safety of Swimming Pools Pumps, Filters, and Chlorinators, and/or to CSA C22.2 No. 108, the Canadian Standard for Liquid Pumps.

§ ‘NSF/ANSI 50’ indicates that the pump bears a mark signifying evaluation to NSF/ANSI/CAN 50, the Standard for Equipment and Chemicals for Swimming Pools, Spas, Hot Tubs, and Other Recreational Water Facilities.

'INT' is not DOE-compliant and can only be purchased for sale outside of the United States.

Product may have been evaluated to other state and local regulatory standards. Listing status may change. Always confirm status with appropriate agency if in doubt.
