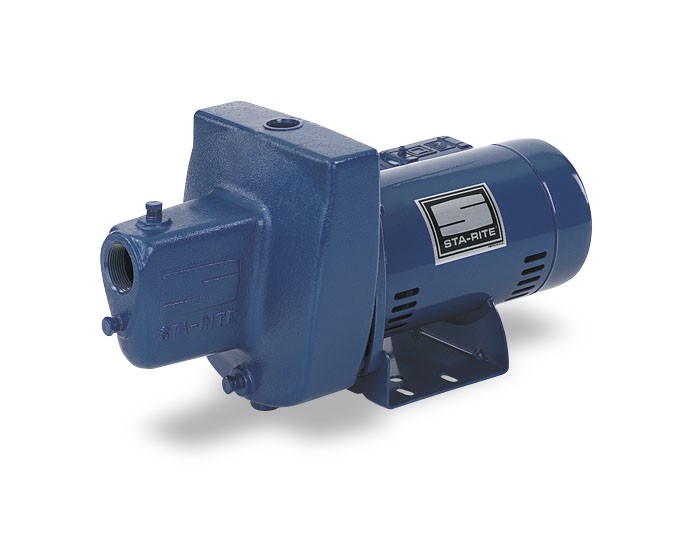

Pentair Sta-Rite ProJet SN Series Cast Iron Shallow Well Jet Pumps

The ProJet SN Series 1/2 through 1-1/2 HP shallow well jet pumps provide excellent performance with strong pressure for wells to 25 ft. deep, and are self-priming after the priming chamber has been filled with water.

KEY FEATURES

  • Quality Construction: Close-grained cast iron body. Drain port provided for easy winterizing.
  • Precision Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
  • Motor Windings: Superior insulation materials protect against excessive moisture and contaminants…assure prolonged motor life.
  • Heavy-duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth quiet operation.
  • High-flow version of the 1/2 HP model allows higher flow rates with less horsepower and pressure.
Explore purchase options available for this product.
Where to Buy

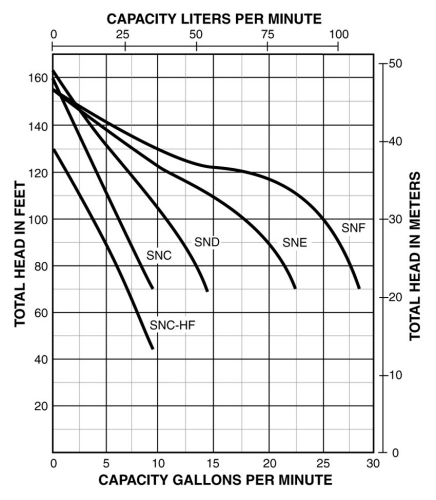

Performance Curves

PerformanceCurves_Shallow Well Jet Pump, Cast Iron, 1/2 thru 1-1/2 HP, 115V/230V, 30-50 Switch, 1-1/4" Suction, 1" Discharge

Specifications

Item #HorsepowerMotor VoltageWeight (LBS)
Item #
SNC-HF25L
Horsepower
1/2
Motor Voltage
115/230
Weight (LBS)
45
Item #
SNC
Horsepower
1/2
Motor Voltage
115/230
Weight (LBS)
45
Item #
SND
Horsepower
3/4
Motor Voltage
115/230
Weight (LBS)
47
Item #
SNE
Horsepower
1
Motor Voltage
115/230
Weight (LBS)
55
Item #
SNF
Horsepower
1-1/2
Motor Voltage
115/230
Weight (LBS)
60
