Europe Shurflo 5000 Series Diaphragm Pumps
Main Content Starts Here
Previous
Next

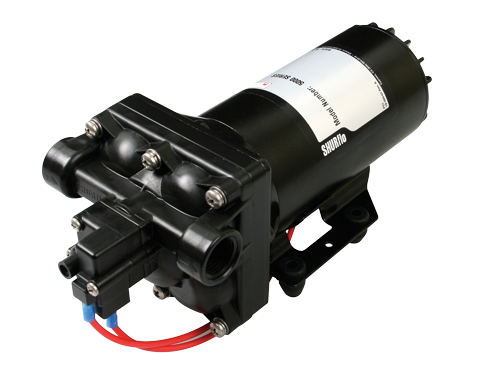

Europe Shurflo 5000 Series Diaphragm Pumps
Designed for high flow, the Shurflo® 5000 series pump design was created with a unique one-piece co-molded diaphragm, assuring long life and top performance in any system. The 5000 series pump is built for powerful, smooth flow. The SHURFLO® quality reputation has been built on the reliability and dependability of every pump we build. Please click here for information on Model 5000 Series Kits.
- Heavy Duty Sealed Motor Optional
- Available Bypass
- Runs Dry without Damage
- Self-Priming
- CE Compliant, NSF Available
- Co-Molded Diaphragm
- Compact 4-Chamber Design
- Flow Rates up to 5.3 GPM
- Chemical-Resistant Elastomers
Specifications
| Item # | Voltage | Open Flow GPM | Amps (Max) | Control Pressure | Control Type | Port Sizes | Housing Material | Valve Material | Diaphragm Material | Motor Wiring |
|---|---|---|---|---|---|---|---|---|---|---|
Item # | Voltage 12 VDC | Open Flow GPM 3.0 | Amps (Max) 7.5 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 16 AWG wire: 12" |
Item # | Voltage 24 VDC | Open Flow GPM 3.0 | Amps (Max) 4.5 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 16 AWG wire: 12" |
Item # | Voltage 12 VDC | Open Flow GPM 4.0 | Amps (Max) 10 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 24 VDC | Open Flow GPM 4.0 | Amps (Max) 5 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 12 VDC | Open Flow GPM 5.3 | Amps (Max) 18 | Control Pressure 60 PSI | Control Type Switch | Port Sizes 1/2" NPT-F | Housing Material Polypropylene | Valve Material Viton | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 24 VDC | Open Flow GPM 5.3 | Amps (Max) 8 | Control Pressure 60 PSI | Control Type Switch | Port Sizes 1/2" NPT-F | Housing Material Polypropylene | Valve Material Viton | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 12 VDC | Open Flow GPM 5.3 | Amps (Max) 18 | Control Pressure 60 PSI | Control Type Switch | Port Sizes 1/2"-14 NPSM | Housing Material Polypropylene | Valve Material Viton | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 24 VDC | Open Flow GPM 5.3 | Amps (Max) 8 | Control Pressure 60 PSI | Control Type Switch | Port Sizes 1/2"-14 NPSM | Housing Material Polypropylene | Valve Material Viton | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 12 VDC | Open Flow GPM 5.0 | Amps (Max) 13 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
Item # | Voltage 24 VDC | Open Flow GPM 5.0 | Amps (Max) 5 | Control Pressure 55 PSI | Control Type Switch & Bypass | Port Sizes 1/2" - 14 NPSM | Housing Material Polypropylene | Valve Material EPDM | Diaphragm Material Santoprene | Motor Wiring 14 AWG wire: 12" |
