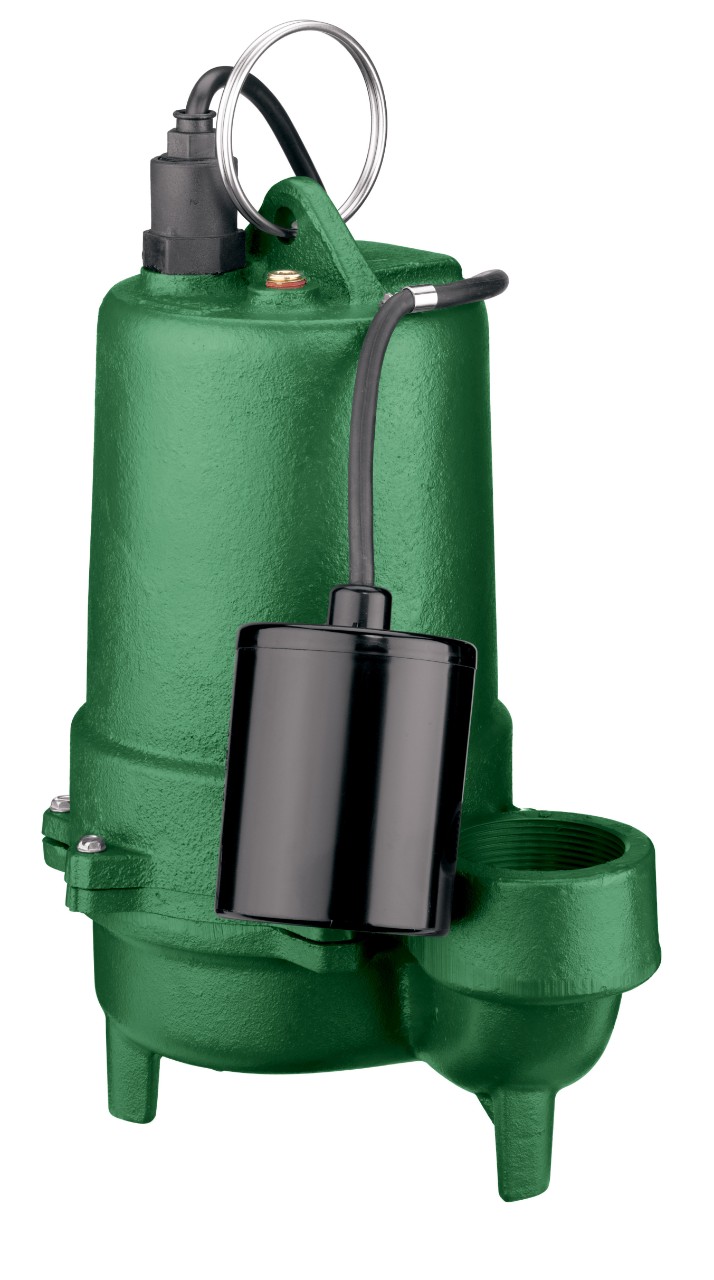

Pentair Myers ME40-CI Cast Iron Effluent Pumps

A rugged series of submersible cast iron pumps with a non-clog, semi-open impellers and solids handling capability to 3/4".

  • Impeller -- Vortex style, pump out vanes for seal protection
  • Cord Design -- Easily replaceable with optional lengths available
  • Serviceability -- Heavy-duty lift out ring, field serviceable
  • Solids Handling -- 3/4" spherical capability
  • Stainless Steel Hardware -- Allows easy disassembly after extended service
  • Controls -- Standard controls available (but not included) for automatic operation
Explore purchase options available for this product.
Where to Buy
Select your model and size

Specifications

Housing Material: Cast Iron
Maximum Head: 40'
MAXIMUM CAPACITY: 65 GPM (246 LPM)
Discharge: 2" (50.8 mm)
Power Cord: 20' water resistant 18-3 SJTW-A/SJTW with integrally grounded 3-prong plug, single phase. CSA Listed. Stainless steel cord connector.
MAXIMUM LIQUID TEMPERATURE: 130°F (55°C)
Discharge Orientation: Vertical
FLOW at 10-foot LIFT: 53 GPM
MAXIMUM SOLIDS HANDLING SIZE: 3/4"
Motor: 4/10 HP, 3450 RPM, 115 Volts, 60 Hz. Oil-filled. Built-in thermal overload protection with automatic reset and PSC motor. Stainless steel motor shaft.
Item #HPAmps (Max)VoltagePhase CyclesCord LengthMechanical Switch TypeSwitch Setting OnSwitch Setting Off
Item #
ME40MC-11-CI
HP
4/10
Amps (Max)
9.7
Voltage
115
Phase Cycles
1/60
Cord Length
20'
Mechanical Switch Type
Manual
Switch Setting On
-
Switch Setting Off
-
Item #
ME40MC-11-CI-30
HP
4/10
Amps (Max)
9.7
Voltage
115
Phase Cycles
1/60
Cord Length
30'
Mechanical Switch Type
Manual
Switch Setting On
-
Switch Setting Off
-
Item #
ME40PC-11-CI
HP
4/10
Amps (Max)
9.7
Voltage
115
Phase Cycles
1/60
Cord Length
20'
Mechanical Switch Type
Manual
Switch Setting On
16.5"
Switch Setting Off
7.5"
