Pentair Hypro 9206C & 9206S Series Centrifugal Pumps
Main Content Starts Here
%20Centrifugal%20Pump%20header.png.thumb.1280.1280.jpg)

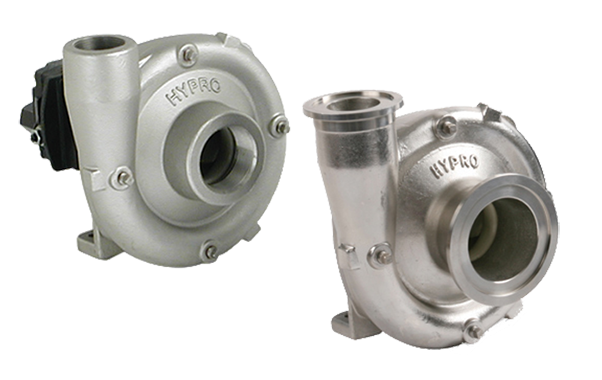

Pentair Hypro 9206C & 9206S Series Centrifugal Pumps
This pedestal mount, cast iron and stainless steel, direct drive centrifugal pump achieves up to 225 gpm (852 lpm) and 80 psi (5.5 bar).
- Pedestal mount, direct drive
- 220 x 220 (U) and 300 x 220 (-3U models) universal flange available
- Pump shaft rotation: Counter clockwise when looking at the shaft end
- Life Guard seals are the industry standard on OEM equipment
Specifications
Pump Type:
Centrifugal
Drive Type:
Direct Drive
Ports:
2" NPT inlet, 1-1⁄2" NPT outlet
WEIGHT:
23 lbs./10.5 kg
Max Fluid Temperature:
140°F/60°C
Impeller:
Nylon
Housing Material:Cast Iron
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Seal Material |
|---|---|---|---|---|---|---|---|
| 9206C | 225 | 852 | 80 | 5.5 | 4200 | 5⁄8" ( 15.9 mm) solid shaft | Viton ® /ceramic standard; Life Guard silicon carbide (B) available |
Housing Material:Stainless Steel
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Seal Material |
|---|---|---|---|---|---|---|---|
| 9206S | 225 | 852 | 80 | 5.5 | 4200 | 5⁄8" ( 15.9 mm) stainless steel shaft | Life Guard silicon carbide standard |
Housing Material:Cast Iron
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Seal Material |
|---|---|---|---|---|---|---|---|
| 9206C | 225 | 852 | 80 | 5.5 | 4200 | 5⁄8" ( 15.9 mm) solid shaft | Viton ® /ceramic standard; Life Guard silicon carbide (B) available |
Housing Material:Stainless Steel
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Seal Material |
|---|---|---|---|---|---|---|---|
| 9206S | 225 | 852 | 80 | 5.5 | 4200 | 5⁄8" ( 15.9 mm) stainless steel shaft | Life Guard silicon carbide standard |
