Pentair Hypro 9262C-C, 9262S-C Series Centrifugal Pumps
Main Content Starts Here
%20Centrifugal%20Pump%20Header.png.thumb.1280.1280.jpg)

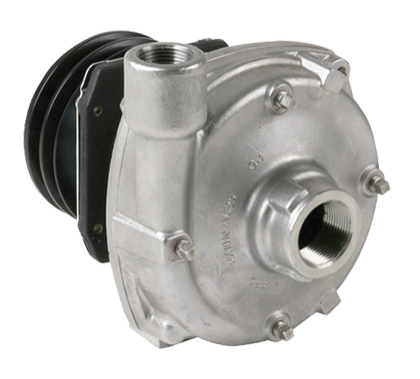

Pentair Hypro 9262C-C, 9262S-C Series Centrifugal Pumps
This pedestal mount with DC clutch drive pump achieves 145 gpm (549 lpm) and 114 psi (7.9 bar).
- Pedestal mount with DC clutch drive
- Double “A” groove pulley (5”/125 mm diameter)
- Impeller: Nylon (standard in cast iron); polypropylene (standard in stainless steel); GTX available
- Pump shaft rotation: Counter clockwise when looking at the shaft end; Clockwise for -CR models
- Life Guard seals are the industry standard on OEM equipment
Specifications
Pump Type:
Centrifugal
Max Fluid Temperature:
140°F/60°C
Ports:
1-1/4" NPT inlet, 1” NPT outlet
AMP DRAW:
45 watts at 12 volts
Impeller:
Nylon (standard in cast iron); polypropylene (standard in stainless steel); GTX available
Housing Material:Cast Iron
| Item # | Product | Drive Type | Max GPM | Max LPM | Max PSI | Max BAR | Seal Material | Max RPM | Rotation |
|---|---|---|---|---|---|---|---|---|---|
| 9262C-C | Series 9262C-C and 9262S-C | DC clutch drive | 88 | 333 | 114 | 7.9 | Cast Iron models – Viton ® /ceramic standard; Life Guard silicon carbide (B) available | 5000 | CCW |
| 9262S-C | Series 9262C-C and 9262S-C | DC clutch drive | 145 | 549 | 114 | 7.9 | Viton ® /ceramic standard; Life Guard silicon carbide (B) available | 5000 | CCW |
Housing Material:Stainless Steel
| Item # | Product | Drive Type | Max GPM | Max LPM | Max PSI | Max BAR | Seal Material | Max RPM | Rotation |
|---|---|---|---|---|---|---|---|---|---|
| 9262S-CR | Series 9262C-C and 9262S-C | DC clutch drive | 145 | 549 | 114 | 7.9 | Life Guard silicon carbide standard | 5000 | CW |
Housing Material:Cast Iron
| Item # | Product | Drive Type | Max GPM | Max LPM | Max PSI | Max BAR | Seal Material | Max RPM | Rotation |
|---|---|---|---|---|---|---|---|---|---|
| 9262C-C | Series 9262C-C and 9262S-C | DC clutch drive | 88 | 333 | 114 | 7.9 | Cast Iron models – Viton ® /ceramic standard; Life Guard silicon carbide (B) available | 5000 | CCW |
| 9262S-C | Series 9262C-C and 9262S-C | DC clutch drive | 145 | 549 | 114 | 7.9 | Viton ® /ceramic standard; Life Guard silicon carbide (B) available | 5000 | CCW |
Housing Material:Stainless Steel
| Item # | Product | Drive Type | Max GPM | Max LPM | Max PSI | Max BAR | Seal Material | Max RPM | Rotation |
|---|---|---|---|---|---|---|---|---|---|
| 9262S-CR | Series 9262C-C and 9262S-C | DC clutch drive | 145 | 549 | 114 | 7.9 | Life Guard silicon carbide standard | 5000 | CW |
