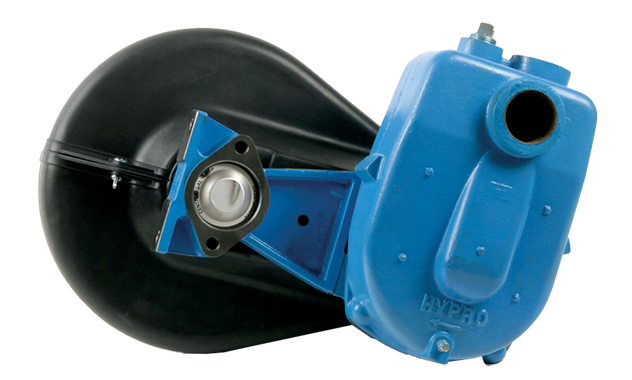

Pentair Hypro 9400C-SP Series Centrifugal Pumps

This belt-driven, cast iron, self-priming centrifugal pump achieves a max of 120 gpm (454 lpm) and a max of 99 psi (6.8 bar).

  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • 220 x 200 universal flange available (U)
  • Impeller: Cast Iron models – Nylon; (GTX available)Stainless Steel models – Polypropylene
  • Motor: internal gear gerotor
  • Hydraulic ports: 1⁄2" NPT inlet, 3⁄4" NPT outlet
  • Life Guard seals are the industry standard on OEM equipment
  • Hydraulic motor seal: double-lip Teflon® and case drain available
  • Max. motor psi: 3000 (bar: 207)•
  • Stainless steel models now available with universal flanges
Explore purchase options available for this product.
Where to Buy

Specifications

Pump Type: Centrifugal
Drive Type: 12-groove belt
Ports: 1-1⁄2" NPT inlet, 1-1⁄4" NPT outlet
Housing Material: Cast Iron
Seal Material: Viton®/ceramic standard; Life Guard silicon carbide (B) available
Max Fluid Temperature: 140°F/60°C
WEIGHT: 57 lbs./25.9 kg
Impeller: Nylon
Item #Max GPMMax LPMMax PSIMax BARMax RPMPTO Output
9403C-540-SP120454996.86001-3⁄8" female, 6 spline shaft
9403C-540Q-SP120454996.86001-3⁄8" 6 spline quick coupler
9403C-540S-SP120454996.86001” (25.4 mm) solid shaft
9403C-1000-SP120454996.810001-3⁄8" female, 21-spline shaft
9403C-1000L-SP120454996.810001-3⁄4" female, 20-spline shaft
Item #Max GPMMax LPMMax PSIMax BARMax RPMPTO Output
9403C-540-SP120454996.86001-3⁄8" female, 6 spline shaft
9403C-540Q-SP120454996.86001-3⁄8" 6 spline quick coupler
9403C-540S-SP120454996.86001” (25.4 mm) solid shaft
9403C-1000-SP120454996.810001-3⁄8" female, 21-spline shaft
9403C-1000L-SP120454996.810001-3⁄4" female, 20-spline shaft
